Prime Lenses:
Anamorphic - Spherical - Large Format - Super35

ARRI Signature Prime 47mm lens
Cooke 5/i 135mm T1.4 lens
Zeiss UltraPrime lens
Canon Century S2000 400mm lens conversion

HomeAll EquipmentLensesPrime Lenses


Spherical

Signature Primes

ARRI Signature Primes - LPL mount

Focal length Close Focus T-Stop lbs: Oz Front Diameter Image Circle
18mm 14" 1.8 -22 4: 6oz 114mm 45mm
25mm 14" 1.8 -22 4: 3oz 114mm 45mm
35mm 14" 1.8 -22 3: 11oz 114mm 45mm
47mm 18" 1.8 -22 4: lbs. 114mm 45mm
75mm 2' 2" 1.8 -22 4: 3oz 114mm 45mm
125mm 3' 4" 1.8 -22 5: 2oz 114mm 45mm



Masterbuilt Classic Primes

Masterbuilt Classic

Focal length Close Focus T-Stop lbs: Oz Front Diameter Image Circle
18mm 18" 1.4 -22 5: 2oz 114mm 46mm
25mm 14" 1.4 -22 4: 10oz 114mm 46mm
35mm 16" 1.4 -22 4: 10oz 114mm 46mm
50mm 19" 1.4 -22 4: 10oz 114mm 46mm
85mm 3' 3" 1.4 -22 4: 10oz 114mm 46mm
105mm 3' 9" 1.4 -22 4: 10oz 114mm 46mm



Tribe7 Blackwing lenses

Tribe7 Blackwing - T-Tuned

Focal length Close Focus T-Stop lbs: Oz Front Diameter Image Circle
20.7mm 9" 1.9 -22 3: 10oz 104mm 50mm
27mm 13" 1.9 -22 3: 10oz 104mm 55mm
37mm 18" 1.9 -22 3: 7oz 104mm 60mm
47mm 17½" 1.9 -22 3: 3oz 104mm 60mm
57mm 19" 1.9 -22 3: 10oz 104mm 60mm
77mm 26" 1.9 -22 3: lbs 104mm 60mm
107mm 27" 1.9 -22 3: 3oz 104mm 62mm



Cooke Panchro/i FF

Cooke Panchro/i FF

Focal length Close Focus T-Stop lbs: Oz Front Diameter Image Circle
21mm 8" 2.2 -22 3: 5oz 110mm 43mm
25mm 8" 2.2 -22 3: 5oz 110mm 43mm
27mm 8" 2.2 -22 3: 5oz 110mm 43mm
32mm 12" 2.2 -22 2: 10oz 110mm 43mm
40mm 16" 2.2 -22 3: 2oz 110mm 43mm
50mm 20" 2.2 -22 3: 5oz 110mm 43mm
65mm1 13" 2.4 - 22 6: 2oz 110mm 43mm
75mm 2' 6" 2.2 -22 4: lbs. 110mm 43mm
100mm 3' 2.6 -22 4: 10oz 110mm 43mm
135mm 2' 9" 2.8 -22 4: 10oz 110mm 43mm

1 65mm is a Macro
Panchro/i Depth of Field tables Download Link



Cooke 5/i

Cooke 5/i

Focal length Close Focus T-Stop lbs: Oz Front Diameter Image Circle
18mm 14" 1.4 -22 6: 10oz 110mm 37mm
25mm 14" 1.4 -22 6: 10oz 110mm 37mm
32mm 14" 1.4 -22 6: 2oz 110mm 39mm
40mm 16" 1.4 -22 6: lbs. 110mm 43mm
50mm 20" 1.4 -22 7: 2oz 110mm 43mm
65mm 2' 1.4 -22 6: 13oz 110mm 43mm
75mm 2' 3" 1.4 -22 6: 10oz 110mm 43mm
100mm 2' 6" 1.4 -22 6: 6oz 110mm 43mm
135mm 2' 7" 1.4 -22 11: 4oz 136mm 43mm

5/i Lighting Control Instructions Download Link
5/i Depth of Field tables Download Link



Cooke S4/i

Cooke S4/i

Focal length Close Focus T-Stop lbs: Oz Front Diameter Image Circle
16mm 9" 2.0 -22 5: 6oz 110mm 32mm
25mm 10" 2.0 -22 3: 8oz 110mm 34mm
32mm 14" 2.0 -22 4: lbs. 110mm 34mm
40mm 18" 2.0 -22 4: 6oz 110mm 33mm
50mm 22" 2.0 -22 3: 6oz 110mm 39mm
65mm 2' 4" 2.0 -22 3: 8oz 110mm 39mm
75mm 2' 8" 2.0 -22 3: 13oz 110mm 43mm
100mm 3' 2" 2.0 -22 4: 6oz 110mm 43mm



Leica R rehoused by GL Optics

Leica R GL Optics

Focal length Close Focus T-Stop lbs: Oz Front Diameter Image Circle
19mm 7" 2.9 -22 1: 8oz 95mm 43mm
28mm 8" 2.9 -22 1: 7oz 95mm 43mm
35mm 19" 1.5 -16 2: 10oz 95mm 43mm
50mm 12" 1.5 -16 1: 14oz 95mm 43mm
60mm* 11" 2.9 -22 3: 5oz 95mm 43mm
80mm 18" 1.5 -16 2: 4oz 95mm 43mm
90mm 21" 2.1 -22 2: 5oz 95mm 43mm
100mm 17" 2.9 -22 3: 2oz 95mm 43mm
135mm 2' 4" 2.9 -22 3: 2oz 95mm 43mm
180mm 5' 3" 2.9 -22 3: 2oz 95mm 43mm

*60mm is a 1:2 Macro lens



Leica R Cine Modified

Leica R - EF mount

Focal length Close Focus T-Stop lbs: Oz Front Diameter Image Circle
19mm 12" 2.8 -22 1: 4oz 80mm 43mm
24mm 12" 2.8 -22 1: lb. 80mm 43mm
35mm 20" 1.4 -16 1: 11oz 80mm 43mm
50mm 20" 1.4 -16 1: 1oz 80mm 43mm
80mm 2' 7" 1.4 -16 1: 11oz 80mm 43mm
100mm * 2.8 -22 1: 13oz 80mm 43mm
135mm 5' 2.8 -22 1: 12oz 80mm 43mm

*100mm is a 1:2 Macro lens



Arri Master Macro

ARRI Master Macro

Focal length Mag. T-Stop lbs: Oz Front Diameter Image Circle
100mm 1:1 2.01 -32 5: 11oz 114mm 42mm

1 T2.0 at INFINITY | T4.3 at CLOSE FOCUS



Zeiss Supreme Primes

Zeiss Supreme Prime

Focal length Close Focus T-Stop lbs: Oz Front Diameter Image Circle
18mm 14" 1.5 -22 5: lbs. 114mm 46mm
25mm 10" 1.5 -22 3: 2oz 95mm 46mm
35mm 13" 1.5 -22 3: 2oz 95mm 46mm
50mm 18" 1.5 -22 2: 11oz 95mm 46mm
85mm 2' 9" 1.5 -22 3: 2oz 95mm 46mm
100mm 3' 9" 1.5 -22 3: 12oz 95mm 46mm



Zeiss UltraPrimes

Zeiss Ultra Prime

Focal length Close Focus T-Stop lbs: Oz Front Diameter Image Circle
14mm 9" 1.9 -22 4: lbs. 114mm 31mm
16mm 12" 1.9 -22 2: 10oz 95mm 33mm
20mm 12" 1.9 -22 2: 10oz 95mm 38mm
24mm 12" 1.9 -22 2: 3oz 95mm 38mm
28mm 12" 1.9 -22 2: 3oz 95mm 39.5mm
32mm 15" 1.9 -22 2: 6oz 95mm 43mm
40mm 15" 1.9 -22 2: 3oz 95mm 41mm
50mm 2' 1.9 -22 2: 3oz 95mm 40mm
65mm 2' 3" 1.9 -22 2: 6oz 95mm 43mm
85mm 3' 1.9 -22 2: 10oz 95mm 43mm
100mm 3' 3" 1.9 -22 2: 10oz 95mm 43mm
135mm 4' 10" 1.9 -22 3: 8oz 95mm 43mm

Ultra Prime Depth of Field tables Download Link



Zeiss Super Speed

Zeiss Super Speed

Focal length Close Focus T-Stop lbs: Oz Front Diameter Image Circle
18mm 10" 1.3 -16 2: 10oz. 80mm 32mm
25mm 10" 1.3 -16 2: lbs. 80mm 36mm
35mm 14" 1.3 -16 1: 12oz 80mm 37mm
50mm 2' 4" 1.3 -16 1: 12oz 80mm 41mm
65mm 2' 4" 1.3 -16 2: 2oz 80mm 43mm
85mm 3' 1.3 -16 2: 6oz 80mm 43mm

Super Speed Depth of Field tables Download Link



Zeiss Standard Speed

Zeiss Standard Speed

Focal length Close Focus T-Stop lbs: Oz Front Diameter Image Circle
10mm 14" 2.1 -22 7: lbs. 156mm 32mm
12mm 10" 2.1 -22 2: 14oz 135mm 30mm
14mm 9" 2.1 -22 3: 3oz 114mm 31mm
16mm1 5" 2.1 -22 1: 5oz 80mm 30mm
20mm 8" 2.1 -22 1: 8oz 80mm 33mm
24mm1 5" 2.1 -22 1: 5oz 80mm 32mm
32mm1 3" 2.1 -22 1 lbs. 80mm 31mm
50mm 2' 2.1 -22 1: 5oz 80mm 43mm
85mm 3' 2.1 -22 1: 8oz 95mm 43mm
100mm 3' 3" 2.1 -22 1: 13oz 80mm 43mm
135mm 4' 10" 2.1 -22 2: 5oz 80mm 43mm

1 Modified for very close focus. Use caution when calibrating lens motors!



Zeiss 180mm and 300mm T3.0 | Canon S2000 400mm T2.8

Telephoto

Focal length Mag. T-Stop lbs: Oz Front Diameter Image Circle
Zeiss
180mm 4' 10" 3.0 -32 2: 14oz 80mm 43mm
300mm1 11' 3.0 -32 4: 14oz 80mm 43mm
Canon FD
400mm2 10' 2.8 -22 14: lbs. 162mm 43mm

1 Includes Zeiss 2x Extender
2 Century S2000 Conversion



Zeiss CP2 set

Zeiss CP2 - EF or PL mount

Focal length Close Focus T-Stop lbs: Oz Front Diameter Image Circle
15mm 12" 2.9 -22 2: lbs. 114mm 43mm
21mm 10" 2.9 -22 2: 3oz 114mm 43mm
28mm 9½" 2.1 -22 2: 3oz 114mm 43mm
35mm 12" 2.1 -22 2: 3oz 114mm 43mm
50mm 18" 2.1 -22 2: lbs. 114mm 43mm
85mm 3' 3" 2.1 -22 2: lbs. 114mm 43mm
135mm 3' 2.1 -22 3: 8oz 114mm 43mm
Super Speed
35mm 12" 1.5 -22 2: 6oz 114mm 43mm
50mm 18" 1.5 -22 2: lbs. 114mm 43mm
85mm 3' 1.5 -22 2: lbs. 114mm 43mm



Laowa Probes

Laowa Probes

Focal length Close Focus T-Stop Mag Image Circle
24mm* (Pro2be) 4mm 8.0 -40 2:1 43mm
24mm (Original) 20mm 14 -45 2:1 45mm

*Includes Direct probe, 35° probe and Periscope probe



PL directors finders

Super 35 Directors finder

Manufacturer Mount Format
ARRI PL Super 35
Fries PL Super 35
Isco Optical Super 35 & 16



 BACK TO LENS INDEX

Anamorphic

Cooke Anamorphic/i SF FF lens set

Cooke Anamorphic/i SF Full Frame 1.8x

Focal length Close Focus T-Stop lbs: Oz Front Diameter Image Circle
32mm 2' 11" 2.3 -22 9: 3oz 136mm 43.3mm
40mm 2' 11" 2.3 -22 9: 11oz 136mm 43.3mm
50mm 2' 9" 2.3 -22 8: 13oz 110mm 43.3mm
75mm 2' 6" 2.3 -22 7: 11oz 110mm 43.3mm
100mm 3' 10" 2.3 -22 8: 6oz 110mm 43.3mm

Anamorphic/i FF Depth of Field tables Download Link

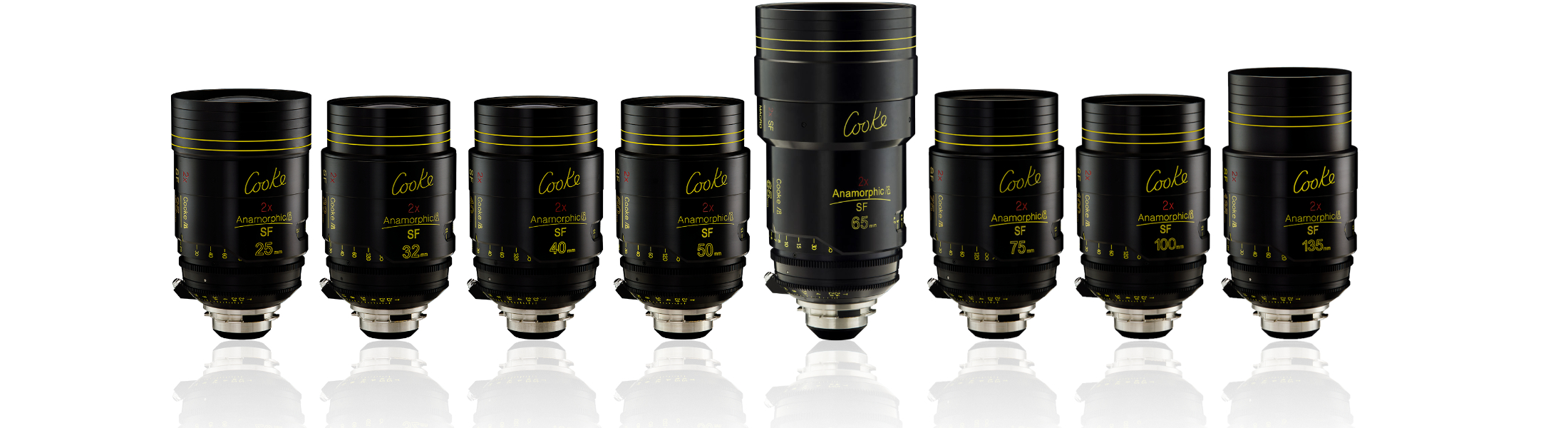

Cooke Anamorphic/i SF lens set

Cooke Anamorphic/i SF 2x

Focal length Close Focus T-Stop lbs: Oz Front Diameter Image Circle
25mm 14" 2.3 -22 9: 5oz 136mm 33.5mm
32mm 14" 2.3 -22 7: 2oz 110mm 33.5mm
40mm 16" 2.3 -22 7: 8oz 110mm 33.5mm
50mm 20" 2.3 -22 7: 14oz 110mm 33.5mm
65mm1 2' 2.3 -22 11: 8oz 110mm 33.5mm
75mm 2' 3" 2.3 -22 7: 2oz 110mm 33.5mm
100mm 2' 6" 2.3 -22 7: 8oz 110mm 33.5mm
135mm 2' 7" 2.3 -22 9: 5oz 110mm 33.5mm

1 65mm is a Macro
Anamorphic/i Depth of Field tables Download Link



Atlas Orion Anamorphic

Atlas Orion Anamorphic

Focal length Close Focus T-Stop lbs: Oz Front Diameter Image Circle
40mm 2' 2.0 -16 5: 5oz 114mm 31mm
65mm 2' 9" 2.0 -22 5: 3oz 114mm 31mm
100mm 3' 6" 2.0 -16 6: 11oz 114mm 31mm
1.6x Extender 1⅓ loss –: 11oz 43mm
